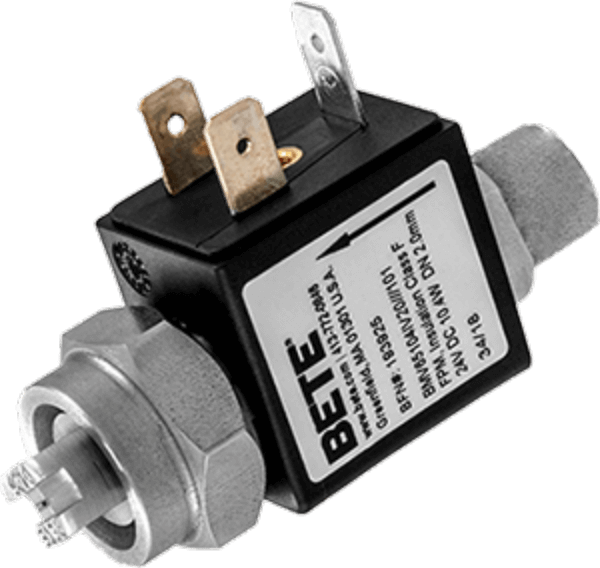

HYDROPULSE®EHPI PRECISION SPRAY AUTOMATIC NOZZLES

Industrial-Grade Electrically Actuated Intermittent Spray Nozzles

DESIGN FEATURES

Interchangeable spray tips

Capable of cycling on/off up to 50 cycles per second

Does not require a compressed air source

Precision volume sprays directly on the target

Reduced waste and minimal overspray maintain a clean, safe environment

Uniform and repeatable coverage improves product consistency

Paired with the FlexFlow spray controller, high-frequency cycling known as Pulse Width Modulation (PWM) can vary the liquid spray flow rate at constant supply pressure with little change in spray performance by adjusting the duty cycle


Product Specifications

Liquid inlet connection
⅛", NPT or BSPP
Maximum liquid flow rate
1.0 GPM / 3.8 LPM
最大额定压力
300 PSI / 20 bar
Thermal insulation class
F (311° F / 155° C)
Power
10.4 W @ 24 VDC
Electrical connector
DIN 11 mm
Maximum cycle frequency
50 cycles / sec
Nozzle construction
Stainless steel wetted components, Viton®(FKM) seals

Interchangeable Nozzle Tip Options

For More Information Download Data Sheets

HydroPulse Electric Catalog Datasheet
HydroPulse Electric - Metric Catalog Datasheet

Notes: Due to pressure loss through the Electric HydroPulse body, the nozzle tip flow rate differs from the standard for each tip.
For the CW tips, full cone/hollow cone patterns are suitable for continuous operation only (not recommended for use with PWM control). Please reference the HydroPulse Electric Datasheet for a resolved flow rate range.
