BJ LOW FLOW FLAT FAN NOZZLES

可互换的扇形喷嘴Tips With Integral Strainer
Detail Fan Spray Pattern Icon

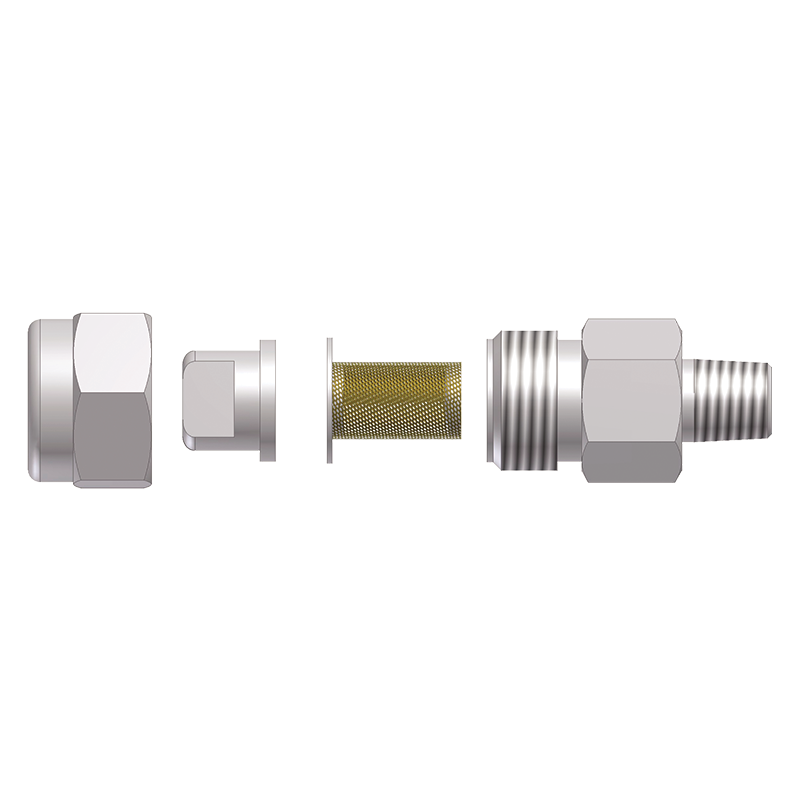

DESIGN FEATURES

Three-piece construction

Interchangeable spray tips

Integral strainer available (please refer to the Accessories PDF for more information)


HOW SPRAY PATTERN IS ACHIEVED

A thin flat sheet of liquid is produced when the fluid exits the orifice, and the spray begins to widen and gradually moves outward from the nozzle

Available Spray Angles
0 - 110°
Flow Rate Range
0.0237 to 24.8 gpm
Available Connection Types
  • Pipe: 1/8, 1/4, 3/8, 1/2
  • Connection Methods: Thread (NPT, BSP, Male, Female)
Materials
Brass, 303, 316
Flow Rates, Spray Angles, Connections
Fan
Select a nozzle number below for performance graph, drawings, and to request a quote.
Flow rate (gpm/lpm) is calculated at differential pressure (psi/bar).
Nozzle Number
Connection Sizes
Spray Angles
Flow Rate (gpm) @ Differential Pressure (psi) (Density: 1 SG)
5 psi
20 psi
40 psi
100 psi
300 psi
500 psi
Pipe:1/8, 1/4, 3/8, 1/2
15°, 25°, 40°, 50°, 65°
0.0237
0.0474
0.0670
0.106
0.184
0.237
Pipe:1/8, 1/4, 3/8, 1/2
73°
0.0273
0.0546
0.0772
0.122
0.211
0.273
Pipe:1/8, 1/4, 3/8, 1/2
15°, 25°, 40°, 50°, 65°, 80°, 95°, 110°
0.0353
0.0707
0.0999
0.158
0.274
0.353
Pipe:1/8, 1/4, 3/8, 1/2
73°
0.0409
0.0818
0.116
0.183
0.317
0.409
Pipe:1/8, 1/4, 3/8, 1/2
15°, 25°, 40°, 50°, 65°, 80°, 95°, 110°
0.0530
0.106
0.150
0.237
0.410
0.530
Pipe:1/8, 1/4, 3/8, 1/2
73°
0.0543
0.109
0.154
0.243
0.421
0.543
Pipe:1/8, 1/4, 3/8, 1/2
15°, 25°, 40°, 50°, 65°, 80°, 95°, 110°
0.0707
0.141
0.200
0.316
0.547
0.707
Pipe:1/8, 1/4, 3/8, 1/2
73°
0.0816
0.163
0.231
0.365
0.632
0.816
Pipe:1/8, 1/4, 3/8, 1/2
15°, 25°, 40°, 50°, 65°, 80°, 95°, 110°
0.106
0.212
0.300
0.474
0.821
1.06
Pipe:1/8, 1/4, 3/8, 1/2
73°
0.109
0.218
0.308
0.487
0.844
1.09
Pipe:1/8, 1/4, 3/8, 1/2
73°
0.136
0.272
0.385
0.609
1.05
1.36
Pipe:1/8, 1/4, 3/8, 1/2
15°, 25°, 40°, 50°, 65°, 80°, 95°, 110°
0.141
0.283
0.400
0.632
1.09
1.41
Pipe:1/8, 1/4, 3/8, 1/2
73°
0.163
0.326
0.462
0.730
1.26
1.63
Pipe:1/8, 1/4, 3/8, 1/2
15°, 25°, 40°, 50°, 65°, 80°, 95°, 110°
0.177
0.354
0.500
0.791
1.37
1.77
Pipe:1/8, 1/4, 3/8, 1/2
15°, 25°, 40°, 50°, 65°, 80°, 95°, 110°
0.212
0.424
0.600
0.949
1.64
2.12
Pipe:1/8, 1/4, 3/8, 1/2
73°
0.218
0.436
0.616
0.974
1.69
2.18
Pipe:1/8, 1/4, 3/8, 1/2
73°
0.273
0.546
0.772
1.22
2.11
2.73
Pipe:1/8, 1/4, 3/8, 1/2
15°, 25°, 40°, 50°, 65°, 80°, 95°, 110°
0.284
0.568
0.803
1.27
2.20
2.84
Pipe:1/8, 1/4, 3/8, 1/2
73°
0.331
0.662
0.936
1.48
2.56
3.31
Pipe:1/8, 1/4, 3/8, 1/2
15°, 25°, 40°, 50°, 65°, 80°, 95°, 110°
0.353
0.707
0.999
1.58
2.74
3.53
Pipe:1/8, 1/4, 3/8, 1/2
15°, 25°, 40°, 50°, 65°, 80°, 95°, 110°
0.530
1.06
1.50
2.37
4.10
5.30
Pipe:1/8, 1/4, 3/8, 1/2
15°, 25°, 40°, 50°, 65°, 80°, 95°, 110°
0.707
1.41
2.00
3.16
5.47
7.07
Pipe:1/8, 1/4, 3/8, 1/2
15°, 25°, 40°, 50°, 65°, 80°, 95°, 110°
1.06
2.12
3.00
4.74
8.21
10.6
Pipe:3/8, 1/2
15°, 25°, 40°, 50°, 65°, 80°, 95°, 110°
1.42
2.83
4.00
6.33
11.0
14.2
Pipe:3/8, 1/2
15°, 25°, 40°, 50°, 65°, 80°, 95°, 110°
1.77
3.54
5.00
7.91
13.7
17.7
Pipe:3/8, 1/2
15°, 25°, 40°, 50°, 65°, 80°, 95°, 110°
2.12
4.24
6.00
9.49
16.4
21.2
Pipe:3/8, 1/2
15°, 25°, 40°, 50°, 65°, 80°, 95°, 110°
2.48
4.95
7.00
11.1
19.2
24.8
Straight Jet
Select a nozzle number below for performance graph, drawings, and to request a quote.
Flow rate (gpm/lpm) is calculated at differential pressure (psi/bar).
Nozzle Number
Connection Sizes
Spray Angles
Flow Rate (gpm) @ Differential Pressure (psi) (Density: 1 SG)
5 psi
20 psi
40 psi
100 psi
300 psi
500 psi
Pipe:1/8, 1/4, 3/8, 1/2
0.0237
0.0474
0.0670
0.106
0.184
0.237
Pipe:1/8, 1/4, 3/8, 1/2
0.0353
0.0707
0.0999
0.158
0.274
0.353
Pipe:1/8, 1/4, 3/8, 1/2
0.0530
0.106
0.150
0.237
0.410
0.530
Pipe:1/8, 1/4, 3/8, 1/2
0.0707
0.141
0.200
0.316
0.547
0.707
Pipe:1/8, 1/4, 3/8, 1/2
0.106
0.212
0.300
0.474
0.821
1.06
Pipe:1/8, 1/4, 3/8, 1/2
0.141
0.283
0.400
0.632
1.09
1.41
Pipe:1/8, 1/4, 3/8, 1/2
0.177
0.354
0.500
0.791
1.37
1.77
Pipe:1/8, 1/4, 3/8, 1/2
0.212
0.424
0.600
0.949
1.64
2.12
Pipe:1/8, 1/4, 3/8, 1/2
0.284
0.568
0.803
1.27
2.20
2.84
Pipe:1/8, 1/4, 3/8, 1/2
0.353
0.707
0.999
1.58
2.74
3.53
Pipe:1/8, 1/4, 3/8, 1/2
0.530
1.06
1.50
2.37
4.10
5.30
Pipe:1/8, 1/4, 3/8, 1/2
0.707
1.41
2.00
3.16
5.47
7.07
Pipe:1/8, 1/4, 3/8, 1/2
1.06
2.12
3.00
4.74
8.21
10.6
Pipe:3/8, 1/2
1.42
2.83
4.00
6.33
11.0
14.2
