SPRAY NOZZLES FOR DRY SCRUBBING APPLICATIONS


A much smaller amount of scrubbing fluid is sprayed into the gas flow than in a corresponding wet scrubber system in dry scrubbing. A dry scrubbing system intends to limit the volume of fluid injected so that the liquid component evaporates completely, leaving either a gaseous or solid component that will react with the contaminant and allow it to be removed from the system.

这些系统经常被用来去除酸gases from combustion streams by injecting an alkaline slurry. For example, in coal power plants, a lime slurry will be sprayed into boiler exhaust to remove sulfur oxides (SOx). The flue gas is hot enough. The slurry is sprayed finely enough to fully evaporate while reacting with the flue gases to neutralize the acid and form solid particulates that can be more easily removed from the exhaust gas.

Common Uses And Industries

Remove contaminants from gas streams
Acid gas removal from process streams
HCL removal
SO2 removal from combustion gases

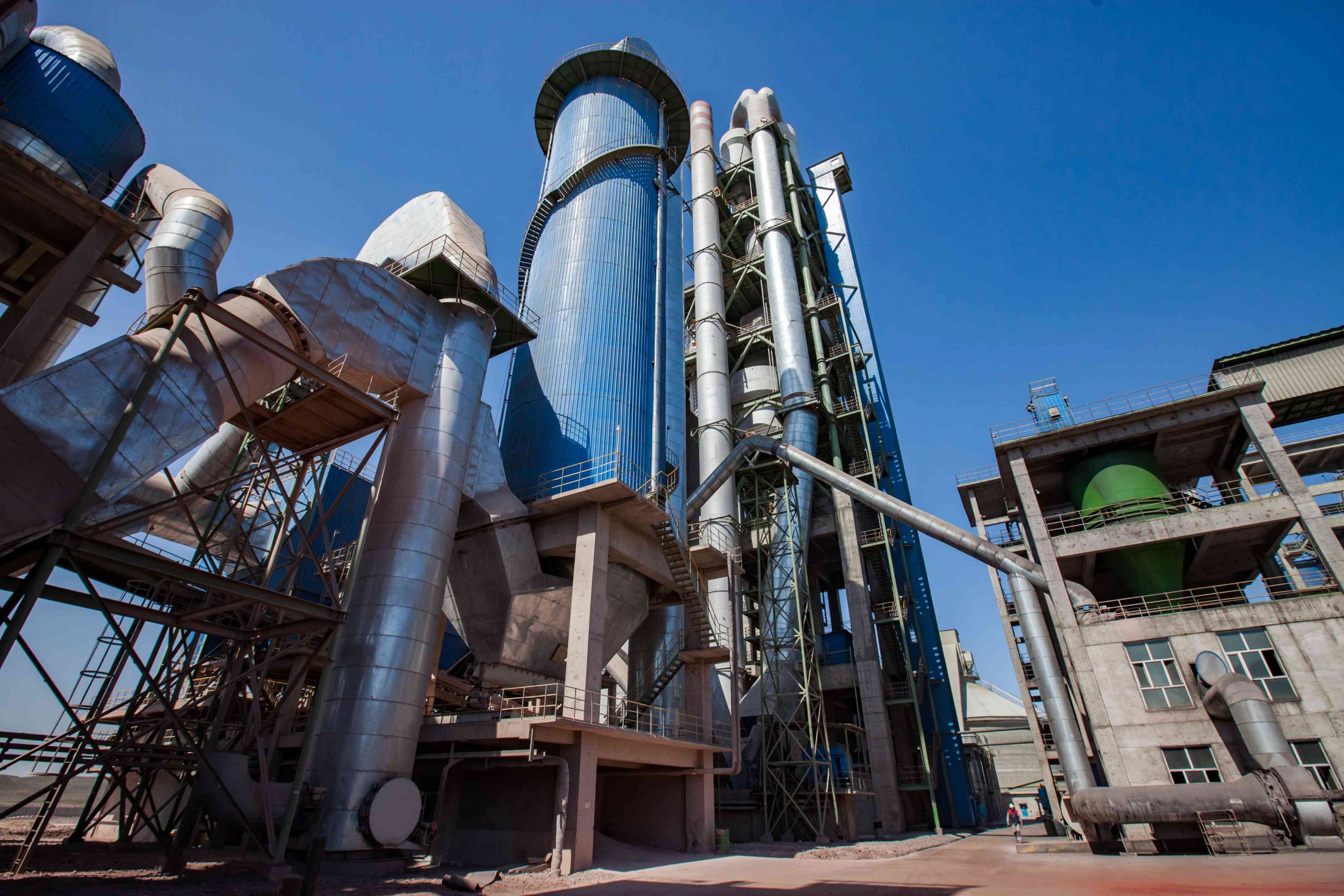

Image of equipment used for producing cement at a cement plant

Selecting A Dry Scrubbing Nozzle

Important factors to consider:

Scrubber duct size, velocity, pressure, temperature, and fluid composition

Required coverage

Nozzle mounting location and orientation

Required droplet size

  • They may be swept away if they are too small, especially in a fast-moving gas flue.
  • If they are too large, they may not fully evaporate, leaving a wet residue on the walls of the scrubber that can harden and build up over time.
  • Available residence time for droplet evaporation

Required materials of construction for corrosive environments

Spray media density and viscosity

Required scrubbing fluid flow rate

Available pressure drop (∆P) across the nozzle

  • ∆P = supply pressure at nozzle inlet – process pressure outside nozzle

Availability of compressed air or other gases for atomization
