TURBOMIX®EDUCTOR TANK MIXING NOZZLES

Agitators Designed for Mixing Liquids in Tanks

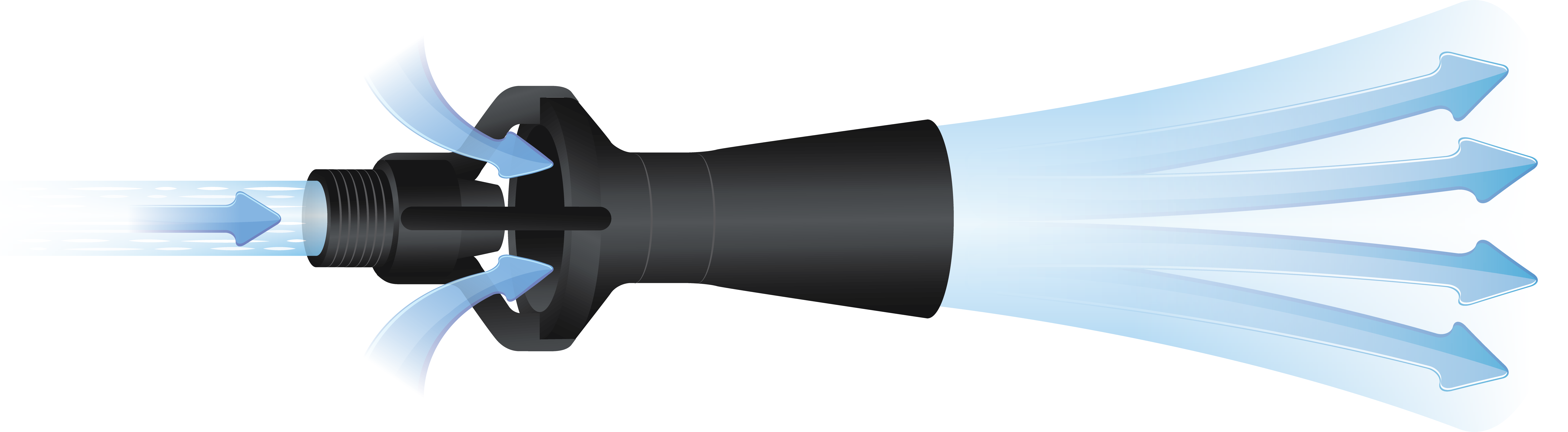

Detail of the BETE TurboMix spray

DESIGN FEATURES

Effective, economical way to circulate liquids in closed or open tanks

No moving parts, clog-resistant

Requires minimal maintenance

Nozzle operation creates a multiplying effect on fluid flow; the volume of discharge liquid will be 3-5 times greater than the motive liquid pumped

Cone-shaped plume


HOW SPRAY PATTERN IS ACHIEVED

In eductor nozzles, the initial fluid pumped into the system is combined with the tank contents within the nozzle before being sprayed back into the tank.

Available Spray Angle
Flow Rate Range
6.96 to 3180 gpm
Available Connection Types
  • Pipe: 3/8, 1/2, 3/4, 1, 1 1/2, 2, 3, 4, 6, 8
  • Connection Methods: Thread (NPT, BSP, Male, Female), Flange (150#)
Materials
Glass-filled Polypropylene, Brass, Carbon Steel, 316
Flow Rates, Spray Angles, Connections
Submerged Jet
选择一个喷嘴数量低于性能图, drawings, and to request a quote.
Flow rate (gpm/lpm) is calculated at differential pressure (psi/bar).
Nozzle Number
Connection Sizes
Spray Angles
Flow Rate (gpm) @ Differential Pressure (psi) (Density: 1 SG)
10 psi
20 psi
30 psi
40 psi
80 psi
100 psi
Pipe:3/8
6.96
9.84
12.0
13.9
19.7
22.0
Pipe:3/8
7.27
10.3
12.6
14.5
-
-
Pipe:1/2
11.1
15.7
19.2
22.1
31.3
35.0
Pipe:1/2
12.0
17.0
20.8
24.0
-
-
Pipe:3/4
13.6
19.2
23.6
27.2
-
-
Pipe:3/4
14.9
21.0
25.7
29.7
42.0
47.0
Pipe:1
23.1
32.6
40.0
46.2
65.3
73.0
Pipe:1
24.0
34.0
41.6
48.1
-
-
Pipe:1 1/2
31.9
45.2
55.3
63.9
90.3
101
Pipe:1 1/2
34.2
48.3
59.2
68.3
-
-
Pipe:2
62.0
87.7
107
124
175
196
Pipe:3
150
212
260
300
424
474
Pipe:4
251
355
435
502
710
794
Pipe:6
601
850
1040
1200
1700
1900
Pipe:8
1010
1420
1740
2010
2840
3180
