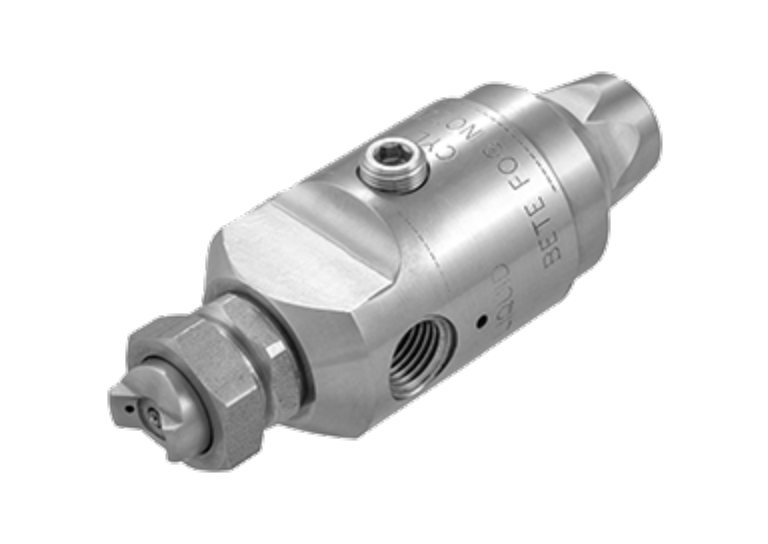

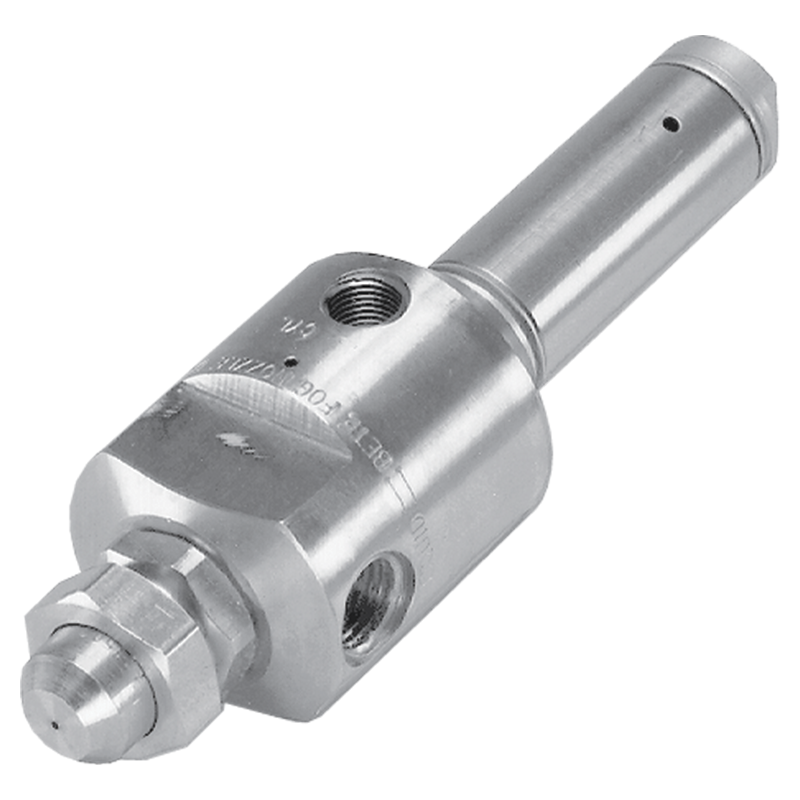

1/4” XA PF300A - XA00 Body, A Hardware
DESIGN FEATURES
Internal mix
Very fine atomization
Flat fan, wide-angle spray patterns (between 80° and 90°)
HOW SPRAY PATTERN IS ACHIEVED
In a pressure-fed system, the liquid is supplied under pressure to either internal or external mix BETE XA Series nozzles. Air and liquid regulators control the fluid delivery pressure, while the air filter and liquid strainer ensure that the supplied fluids are high quality. Operational control is maintained by manual or solenoid valves used in conjunction with the various hardware assemblies.
Liquid and air streams come together inside the nozzle and are mixed, and they exit through the same orifice creating an extra-wide fan spray pattern.
The streams are not independent; airflow changes will affect the liquid flow.
Available Spray Angle
85°
Available Connection Types
- Pipe: 1/8, 1/4, 1/2
- Connection Methods: Thread (NPT, BSP, Female)
Materials
Nickel-plated Brass, 303, 316, Nickel-plated Brass / 304, 303 / 304
Flow Rates, Spray Angles, Connections
Fan
Select a nozzle number below for performance graph, drawings, and to request a quote.
Flow rate (gpm/lpm) is calculated at differential pressure (psi/bar).
Nozzle Number
Connection Sizes
Spray Angles
