Full Cone Spray Nozzles

The most frequently used type ofspray nozzles. Produces medium to large-size droplets ideal for cooling, quenching, washing, and fire protection.

Configure Your Exact Full Cone Spray Nozzles

Start Here

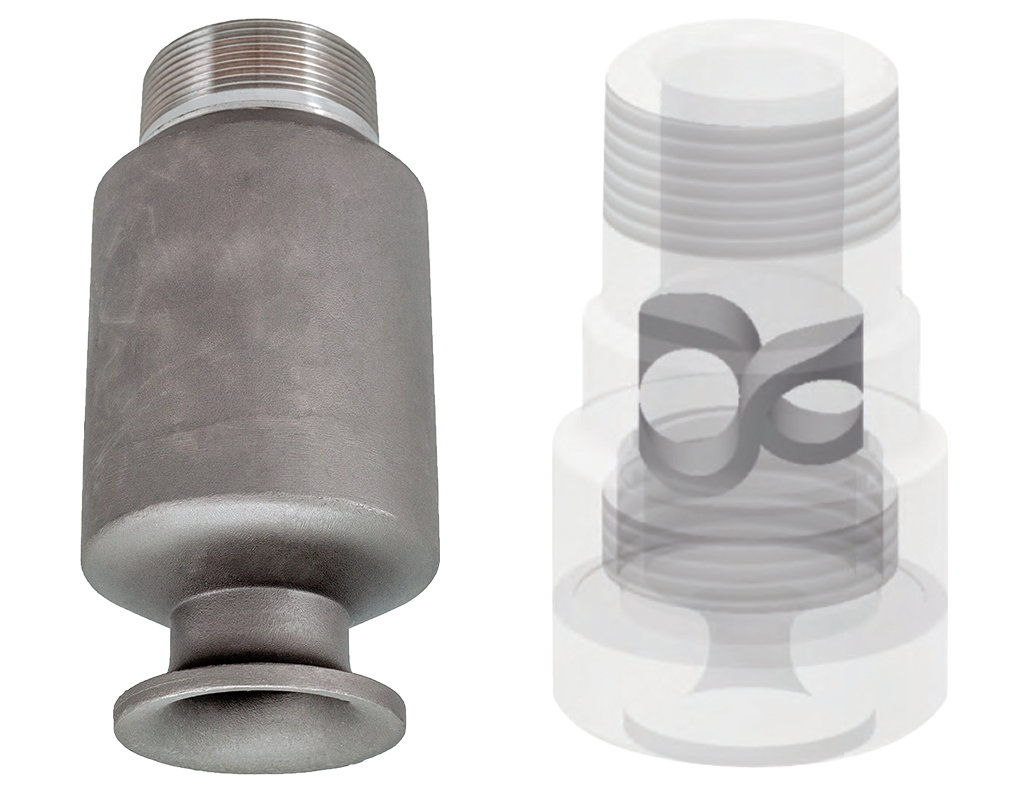

Original BETE MaxiPass® MP - Maximum Free Passage

Discover the ultimate clog-resistant design in a full cone nozzle. Two unique S-shaped internal vanes allow maximum free passage of particles.MaxiPassprovides great coverage and even spray distribution.

Customers trust BETE’s MaxiPass full cone nozzles for high-reliability spray performance even under the most difficult conditions.


Improve Your Process with Spray Technology Fabrications

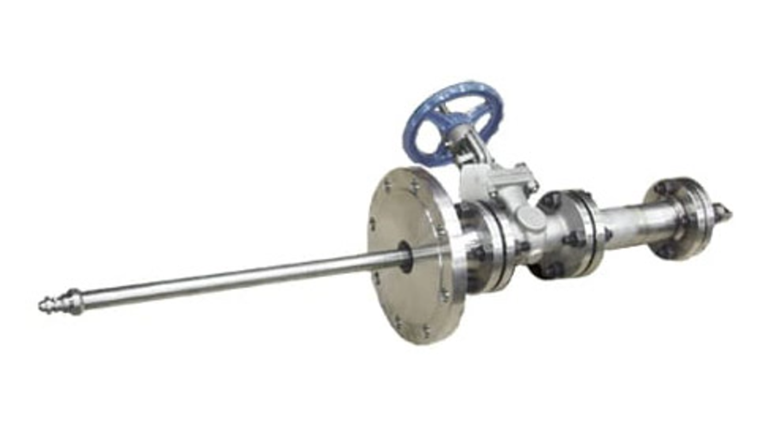

Choose your full cone spray nozzle, and BETE can custom design and fabricate spray headers,spray lances, and injectors for precise placement to optimize your spray process.

Fabrication is BETE’s specialty, from complex ASME Code compliance to simple flush pipe assemblies.

Contact us
Tell us more about your spray application
Full Cone Products
Detail of the BETE MP

MAXIPASS®(MP) MAXIMUM FREE PASSAGE FULL CONE NOZZLES

Ultimate Clog-Resistant Spray Nozzles for Cooling and Quenching
Detail of the BETE MPL

MAXIPASS®L (MPL) LOW FLOW FULL CONE NOZZLES

Energy-Efficient Axial Spray Nozzles for Cooling & Quenching
Detail of the BETE TF

TF FULL CONE & HOLLOW CONE SPIRAL NOZZLES

Original Pigtail Spray Nozzle for Quenching, Scrubbing, and Evaporative Cooling
Detail of the BETE TFXP

TFXP LARGEST FREE PASSAGE SPIRAL NOZZLES

Clog-Resistant Full Cone Pigtail Nozzles

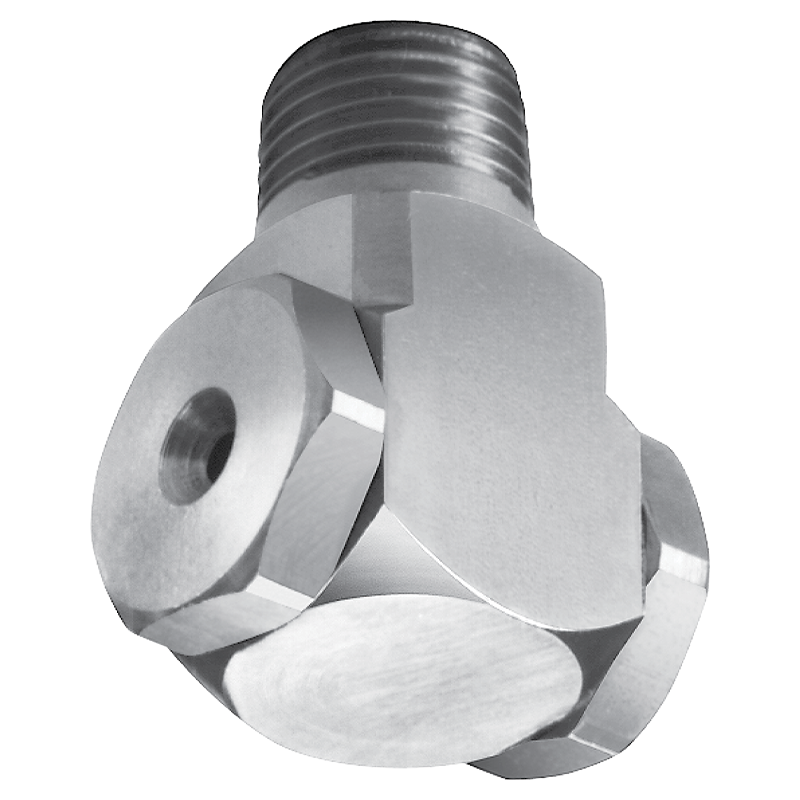

WTZ RIGHT ANGLE FULL CONE NOZZLES

Clog-Resistant Tangential Spray Nozzles
Detail of the BETE CW

CW INTERCHANGEABLE SPRAY NOZZLE TIPS

Low Flow Full Cone and Hollow Cone Nozzles for Quick Change
BETE N spray nozzle

N SPIRAL FIRE PROTECTION NOZZLES

FM and UL Approved Full Cone Nozzles for Offshore Fire Protection
Detail of the BETE STXP

STXP LARGEST FREE PASSAGE FULL CONE SPIRAL NOZZLES

Abrasion and Clog-Resistant Pigtail Spray Nozzles
Detail of the BETE TF29-180

TF29-180 FIREBETER FIRE PROTECTION NOZZLES

Ultra-Wide Full Cone Fire Suppression Nozzles
Detail of the BETE NCFL

NCFL FLANGED FULL CONE NOZZLES

大免费通道轴向喷嘴高速流Rates for Quenching

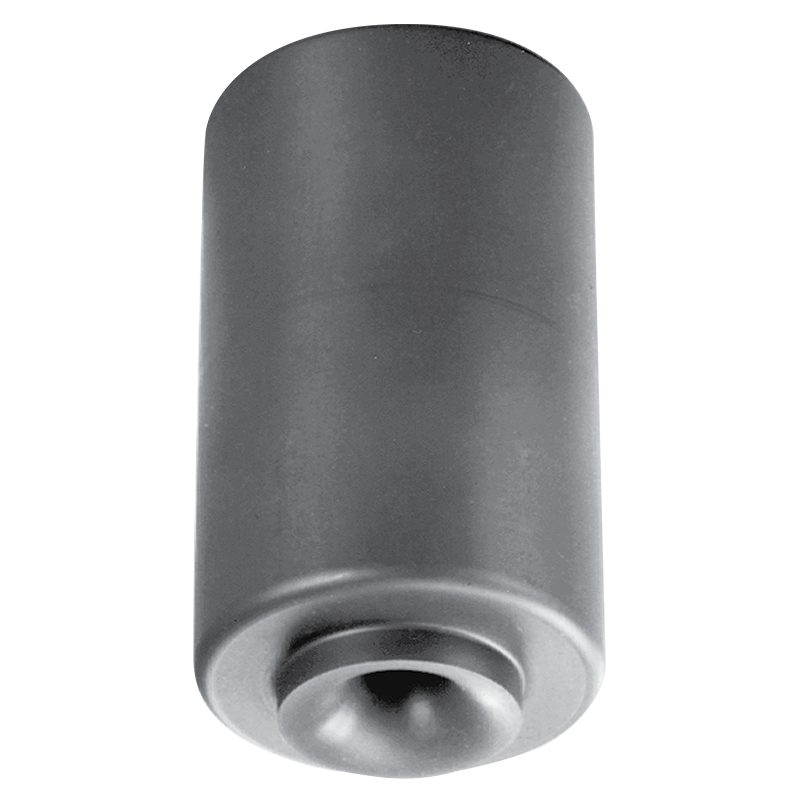

Detail of the BETE NC

NC PLASTIC FULL CONE NOZZLES

Axial Spray Nozzle Made From Chemical-Resistant Plastics

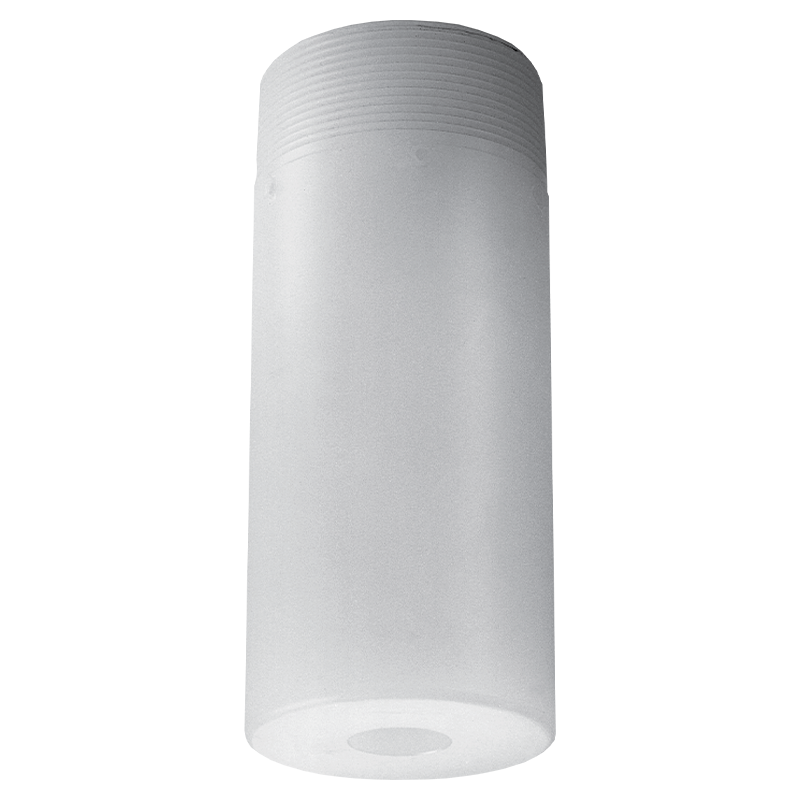

Detail of the BETE NCK

NCK NARROW ANGLE FULL CONE INJECTOR NOZZLES

High-Velocity Nozzles With Coarse Hard-Driving Spray
BETE NCS

NCS COMPACT FULL CONE NOZZLES

Fits in Tight Spaces and Performs Like a Full-Size Nozzle

WL FULL CONE NOZZLES

Axial Spray Nozzles With Low Flow Rates

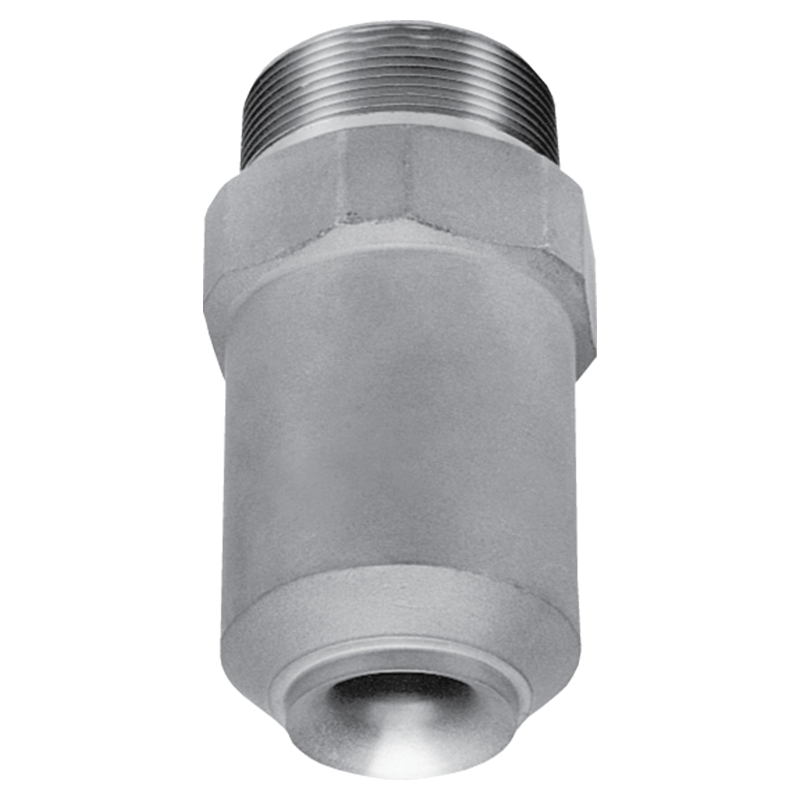

Detail of the BETE SC

SC ALLOY FULL CONE NOZZLES

Metal Casted Axial Spray Nozzles With Internal Removable Vane

ST ABRASION RESISTANT SPIRAL NOZZLES

Clog-Resistant Pigtail Nozzles Designed to Endure Limestone Slurry

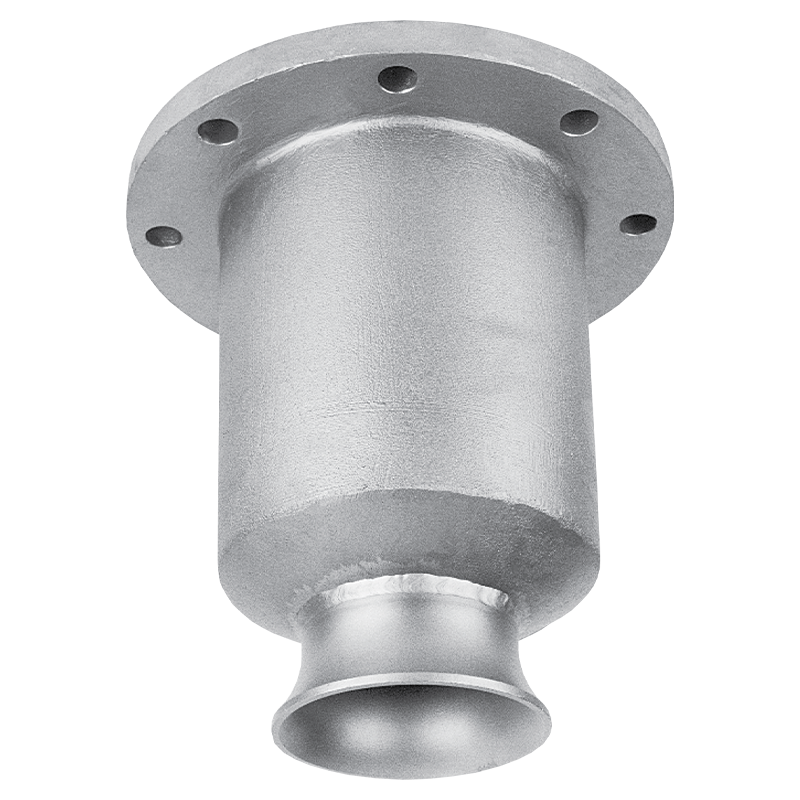

Detail of the BETE TC

TC ALLOY FULL CONE NOZZLES

High-Flow Axial Spray Nozzles for Deluge Cooling & Gas Scrubbing

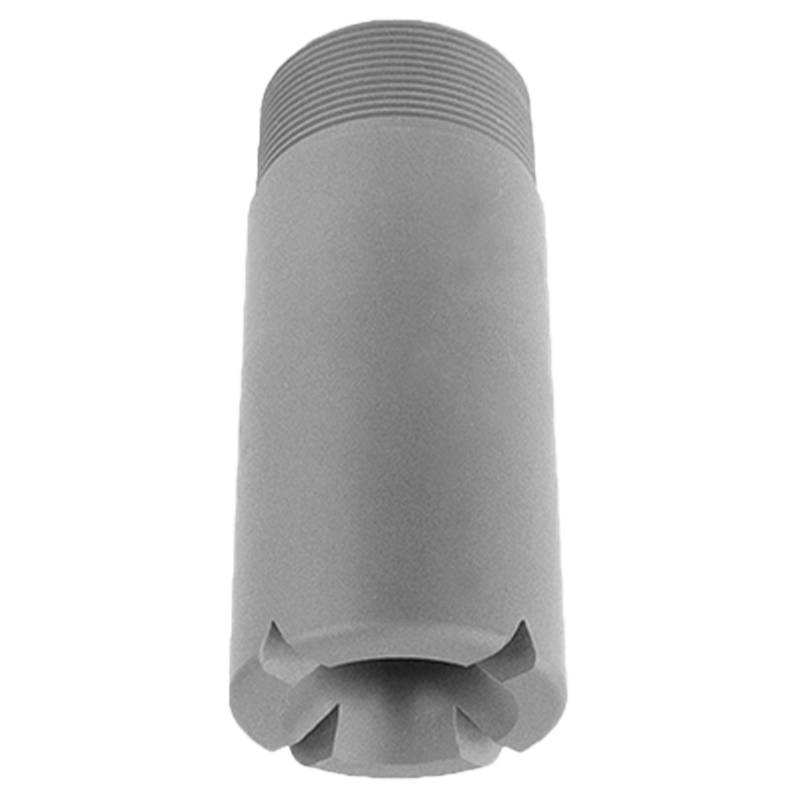

Detail of the BETE NCSQ, commonly made of Polypropylene, PTFE and PVC

NCSQ SQUARE FULL CONE NOZZLES

Uniform Square Spray Pattern Coverage Nozzles
Detail of the BETE SF

SF SNAP RELEASE SPRAY NOZZLE SYSTEM

Snap-In Nozzle Tips for Quick Set-Up and Change

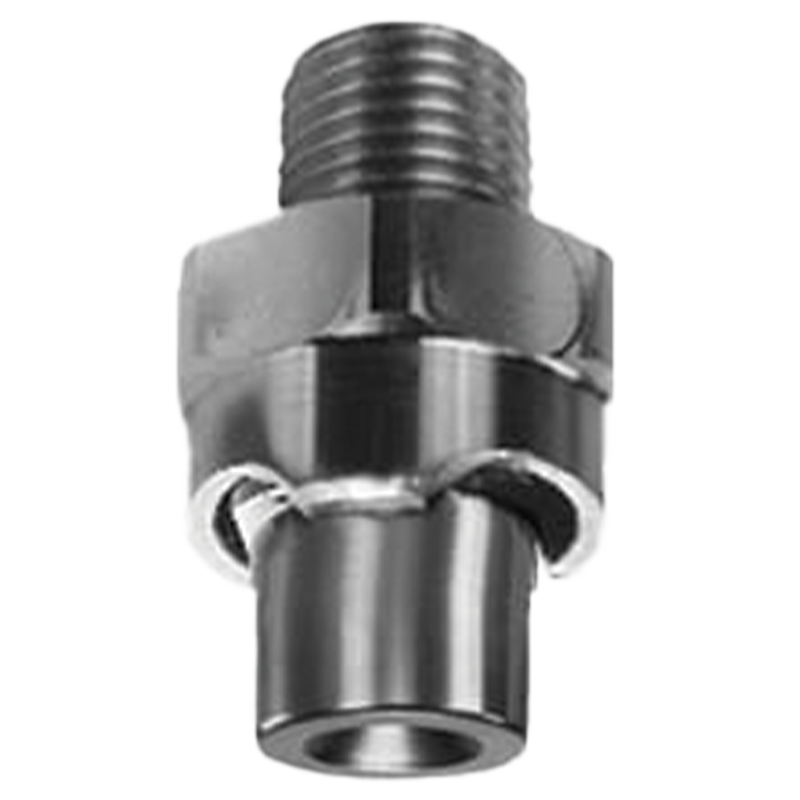

Detail of the BETE EZWL

EZWL QUICK CONNECT FULL CONE NOZZLES

Interchangeable Nozzle Tips With Base and Gasket
Detail of the BETE TFXP

TFXPW EXTRA WIDE SPRAY COVERAGE FIRE PROTECTION NOZZLES

Large Free Passage Full Cone Spiral Nozzle

Full Cone Spray Nozzles

The nozzle emits spray in a conical shape by dispersing liquid over the cone’s interior. When the spray meets with a surface, a circle of spray is created with liquid throughout, creating the full cone spray pattern.

There are two types of full cone nozzle designs.

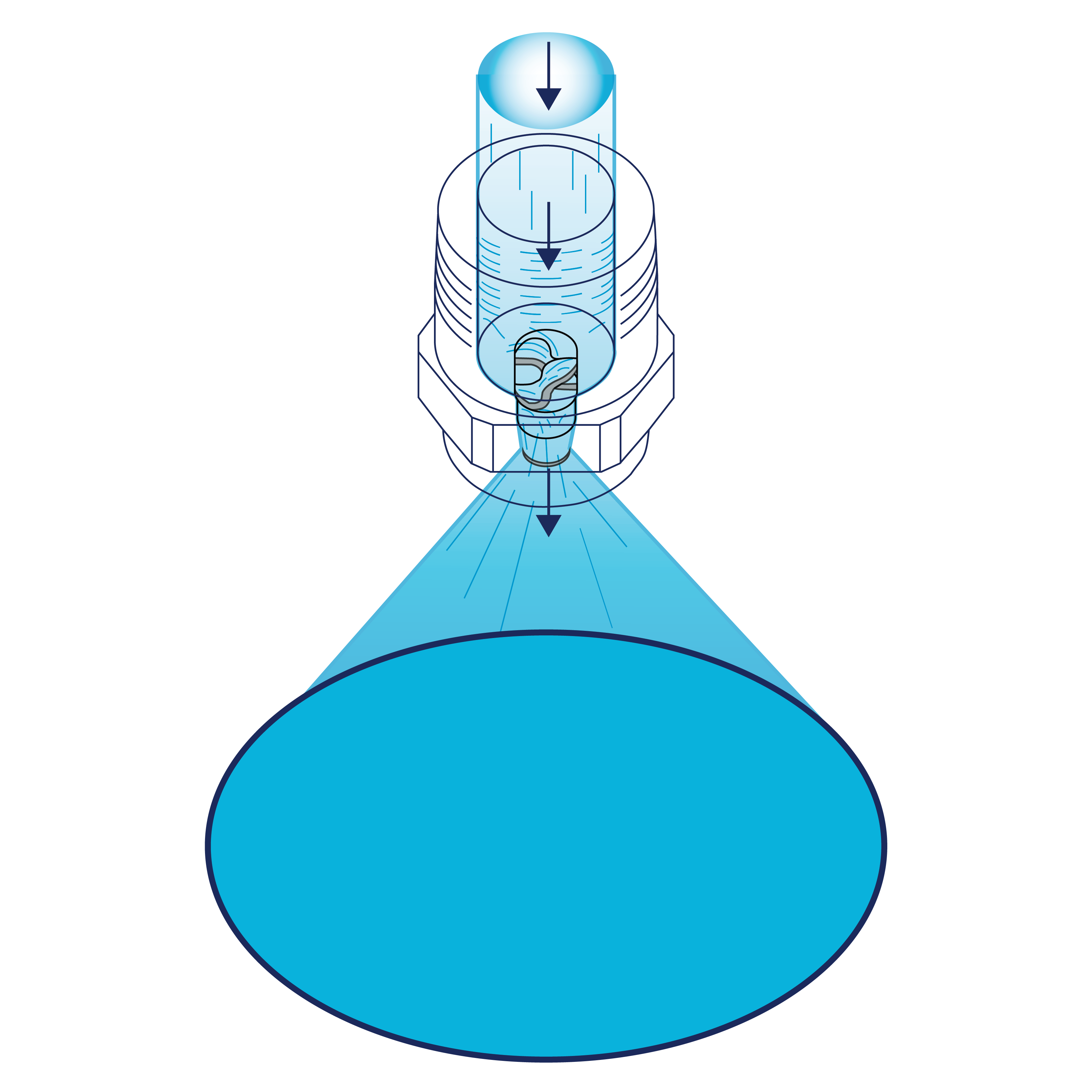

Axial

  • Spray exits on the same axis it enters
  • 实习生al disc or vane causes the liquid to spin, and the centrifugal force exerted upon the geometry of the exit creates the spray pattern
  • Wide flow ranges
  • Large free passage
  • Resistant to clogging

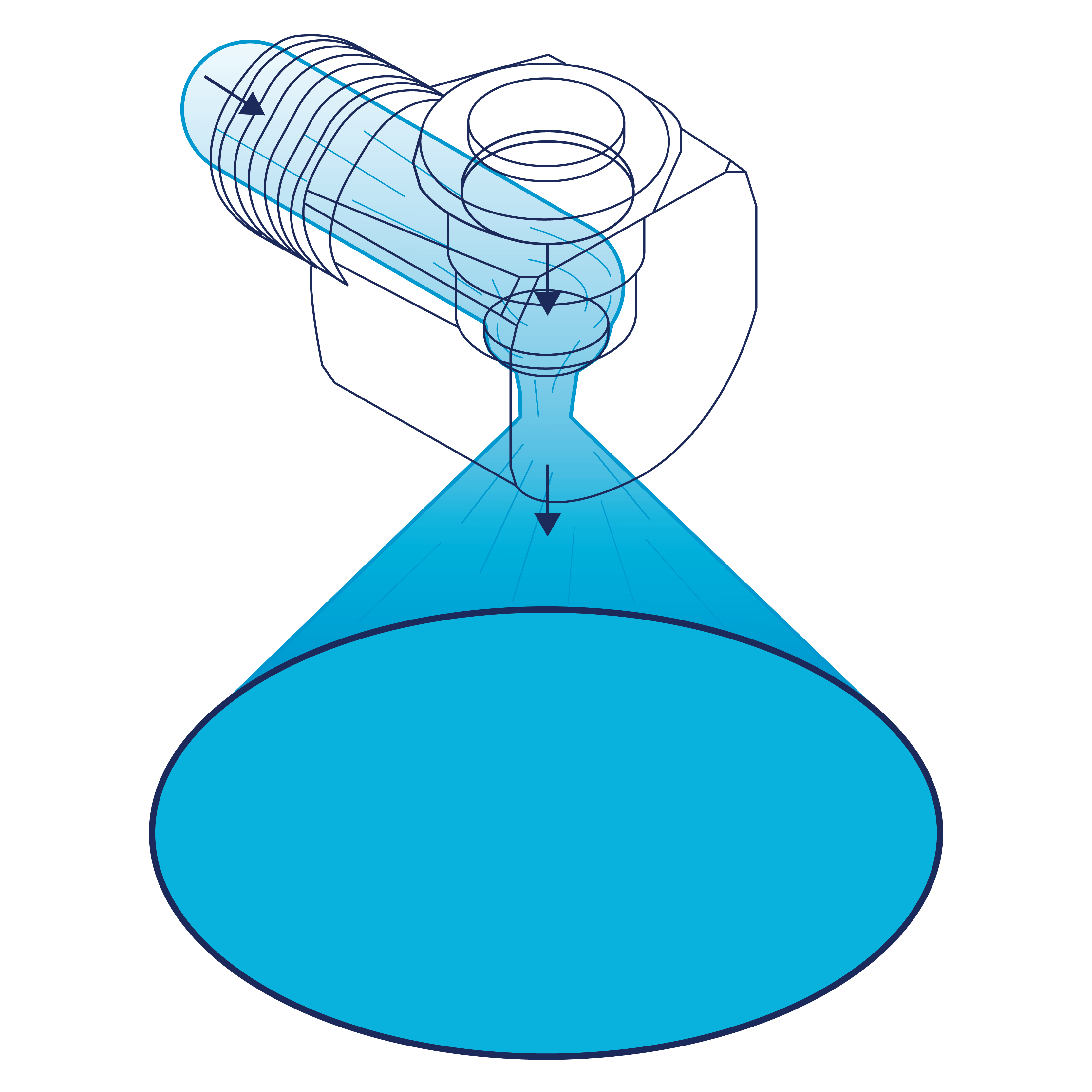

Tangential (Right Angle)

  • Spray exits 90° from the entry axis
  • 实习生al geometry creates the spray pattern by the liquid swirling around the body cavity before exiting the orifice
  • Resistant to clogging
  • Larger droplets than spiral
Examples of Why You Would Choose This Spray Pattern Over Others
  • If you are looking for even distribution over a packed-bed, a full cone nozzle pattern provides great coverage results.

  • Rain simulation and foam-control applications provide even distribution over specific surface areas using full cone nozzles.

  • 这两个年代va MaxiPass喷嘴的设计ne for larger free passage, while the other full cone series utilize a disc with smaller areas that could trap particulates in the water.

Nozzle Spray Videos

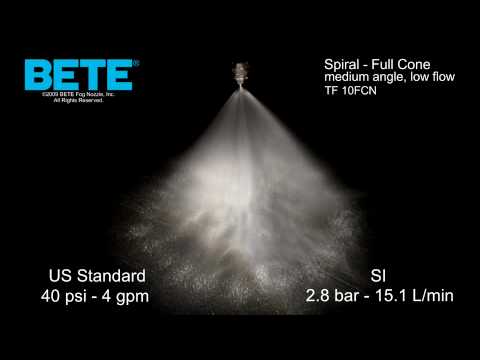

Full Cone Spiral Spray Nozzle: BETE TF 10 FCN

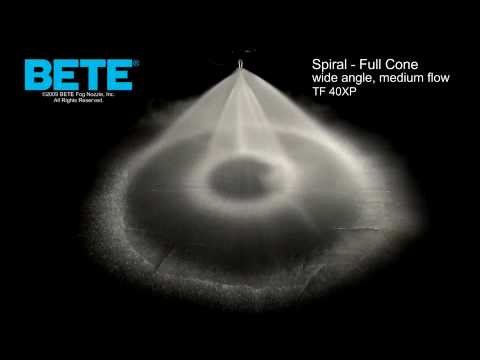

Full Cone Spiral Spray Nozzle: BETE TF 40XP

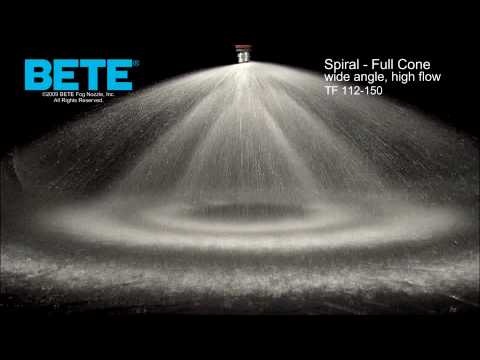

Full Cone Spiral Spray Nozzles: BETE TF 112-150

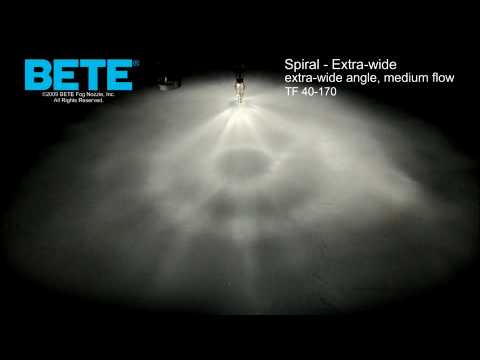

Extra-wide Full Cone Spiral Spray Nozzle: BETE TF 40-170

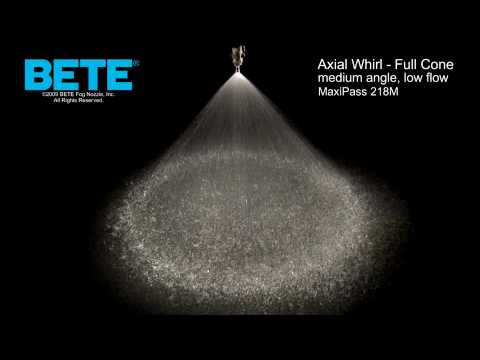

Axial Whirl, Full Cone Spray Nozzle: BETE MaxiPass 218M

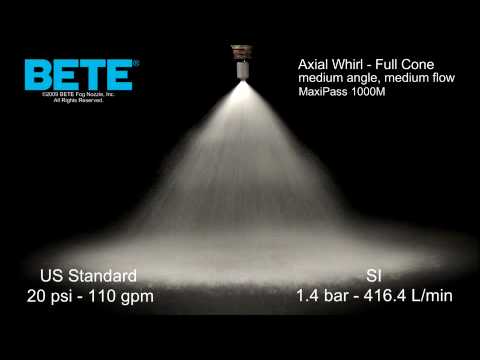

Axial Whirl, Full Cone Spray Nozzle: BETE MaxiPass 1000M

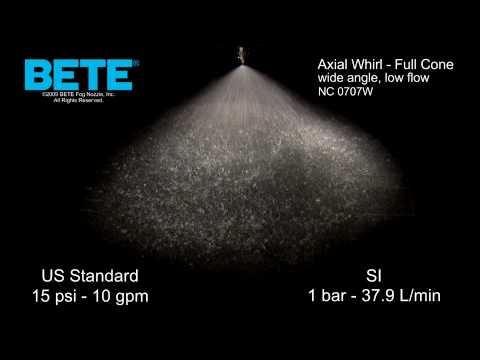

Axial Whirl, Full Cone Spray Nozzle: BETE NC 0707W

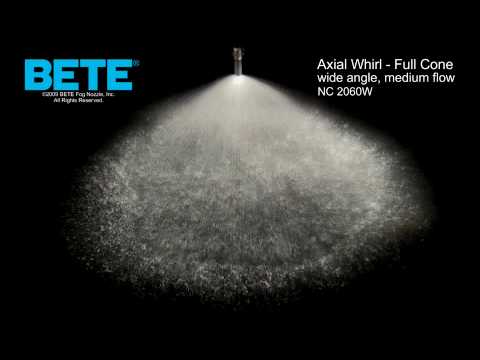

Axial Whirl, Full Cone Spray Nozzle: BETE NC 2060W

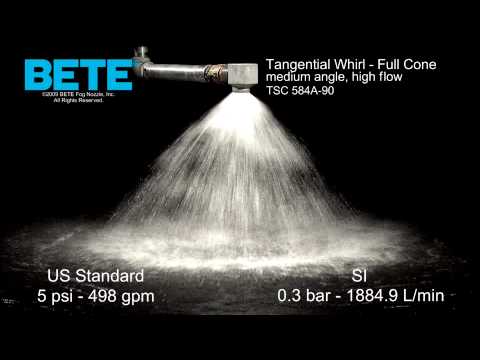

Tangential Whirl, Full Cone Spray Nozzle: BETE TSC 584A 90
